Fast 3D Modeling for Utility-Scale PV: Iterate Without Waiting Hours

Last updated: November 24, 2025

As utility-scale solar projects continue to expand and increasingly use terrain-following trackers on challenging landscapes, accurate 3D analysis is crucial for reliable energy predictions.

Traditional 2D modeling methods fall short as they can’t effectively capture row-to-row shade on uneven terrain, where two successive rows may be at different elevations on different north–south slopes. 2D modeling also fails to account for obstacles such as trees, fences, power towers, and buildings.

Furthermore, 2D models cannot capture the variations in irradiance across a power plant when modules have different orientations because of terrain (changes in the north–south slope) or because of advanced tracking algorithms, where the tracker rotation angle can vary from row to row to avoid shade.

Modern 3D engines, such as the one used in PlantPredict, are designed to fill this gap. Let’s dive into how they work.

Understanding 3D Analysis

3D modeling accounts for the complex interactions between solar trackers, terrain topography, nearby objects, and the sun’s position to accurately estimate energy production in real-world conditions. It accounts for:

  • Direct beam shading: How bays of modules cast shadows on each other across uneven terrain. It also includes shading from nearby objects such as trees, buildings, transmission towers, or other structures.
  • 3D transposition correction: How modules on sloped terrain receive varying amounts of sunlight depending on their orientation (e.g., north-facing vs. south-facing slopes). This also applies to systems with advanced tracking algorithms, where tracker rotation angles can vary from row to row.
  • Shading electrical effects: How the effect of shade is non-linear and depends on the module’s electrical characteristics, such as bypass diode configuration, cell layout, and mounting orientation.

Why 3D Modeling Matters?

The 2D Limitation Problem

Because they miss the third dimension, traditional 2D modeling tools must rely on some basic assumptions, such as:

  • Flat terrain or averaged slopes
  • Infinite sheds (the power plant is modeled as an infinite repetition of rows in all directions), ignoring edge effects
  • Uniform interactions from row to row
  • Ignoring vertical structures or terrain-following trackers

These assumptions often lead to an underestimation of shading losses, especially in utility-scale PV projects with:

  • Rolling or sloped terrain
  • Areas with surrounding vegetation or buildings
  • Projects that utilize standard backtracking algorithms

Thus, relying on traditional 2D modeling tools can result in misguided design decisions (e.g., unoptimized grading) that ripple through the entire project lifecycle, and in energy yield overestimation and long-term plant underperformance.

The Industry Challenge

In today’s era of clean energy and artificial intelligence, the solar industry is experiencing significant growth. New technologies, such as terrain-following trackers and advanced tracking algorithms, are expanding the geographical areas where utility-scale PV power plants can be implemented. However, the tools supporting this solar revolution are not keeping pace, particularly in terms of speed.

Two-dimensional simulations are no longer sufficient, and three-dimensional modeling is becoming the industry standard. However, tools like PVsyst, SolarFarmer, PVCase Yield, or RatedPower struggle to provide the necessary speed for 3D modeling of large-scale power plants (hundreds of MWs and beyond).

As demand for utility-scale PV systems continues to rise, engineers need to predict energy yield more quickly, iterate layouts faster, and speed up design decisions. The industry requires faster 3D modeling, able to simulate hundreds of MWs of projects in a matter of minutes instead of hours.

3D Shade Calculation Approaches

Among 3D modeling tools, 3D shade engines are one of the most critical elements of the 3D calculation workflow because shading has a non-linear effect on PV module production: 2% of shade on a given module can reduce its output by 50% or more.

Shading calculations methods are usually classified as “Discrete-space” or “Continuous-space”, the difference between these two approaches are highlighted below. In both cases, the simulation starts from a detailed 3D scene that represents the physical layout of the PV array and surrounding objects.

Discrete-space Shade Calculation Methods

Discrete-space methods refer to techniques where the space is discretized and calculations are performed on elementary units (e.g., pixels, rays, target points). These methods, which are conceptually similar to raster graphics, include ray-tracing and ray-casting, pixel-counting, and hemicube projection.

Because calculations are discretized, these techniques introduce an element of resolution and a trade-off between accuracy and computation speed: increasing the number of rays, pixels, or target points will improve accuracy at the expense of speed.

A majority of PV modeling software relies on discrete-space approaches to calculate shade. Ray-tracing is the most common technique (used by SunSolve, PVCase Yield, RatedPower, and SolarGIS), although other approaches are also commercially available (SolarFarmer relies on hemicube modeling, for example). Ray-tracing presents the advantage of also allowing accurate modeling of multiple reflections and of diffuse shading.

The main drawback of these approaches is that they are challenging to scale. For medium-to-large-scale power plants (20–50 MW and above), simulation runtimes become prohibitively long unless the user is ready to sacrifice on resolution and lose accuracy. Thus, discrete-space techniques are a good tool for small-scale (<20 MW) PV systems, or to accurately evaluate a portion of a larger system, but they fail to deliver the speed necessary to rapidly simulate modern utility-scale power plants in their entirety.

Continuous-space Shade Calculation Methods

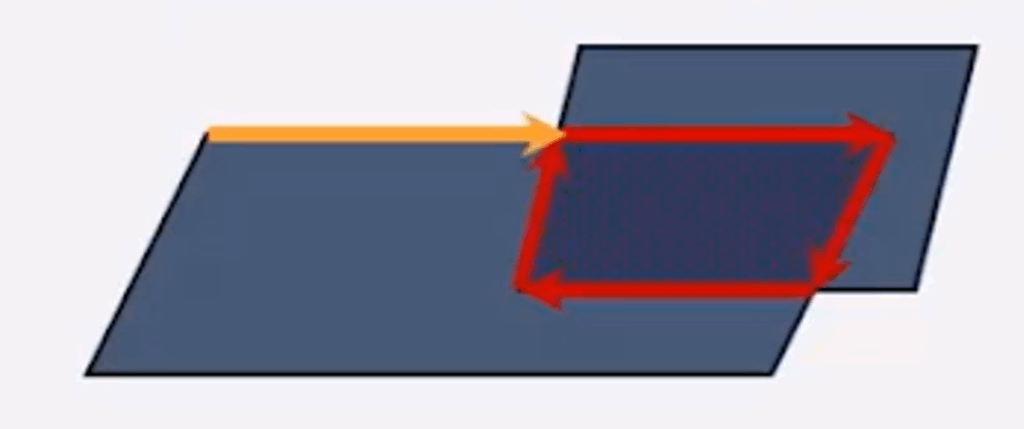

PlantPredict and PVsyst use a continuous-space approach, meaning that the shapes are defined by their geometry without the need for projection onto a discrete grid. This is conceptually similar to vector graphics. PlantPredict uses the polygon clipping method, where the shaded area of a given module is defined by a polygon representing the exact shape of the shade.

This method produces precise shadow boundaries without depending on a fixed pixel grid. As a result, there is no more trade-off between resolution and speed: you get sharp and scalable results, even for very large PV projects.

When combined with smart acceleration techniques, polygon-clipping-based algorithms can be significantly faster than rasterized or discretized methods, enabling PlantPredict to process small PV systems in a matter of seconds and large utility-scale projects in a matter of minutes.

PlantPredict vs PVsyst 3D Comparison

Although PlantPredict and PVsyst both rely on a continuous-space approach to model shade, PlantPredict’s algorithm has been designed with processing speed and scaling in mind, enabling it to outperform PVsyst for system sizes over 1 MW and to model systems over 1 GW.

To provide results in a reasonable timeframe, PVsyst provides a “Fast” mode that relies on interpolation: the shade is calculated for a subset of sun positions (on a grid of 10° elevation by 20° azimuth) and, for each timestamp, the shade fraction is calculated by interpolating from the shade table.

This approach provides a decent balance between processing speed and accuracy for simple systems, but cannot accurately describe systems where the rotation angles can change from row to row (terrain-aware backtracking). Furthermore, PVsyst shade simulations are only performed hourly, while PlantPredict can perform simulations at any time scale.

Feature PlantPredict PVsyst
System Size/Speed See Chart Below See Chart Below
3D Beam Shading Yes Yes
External Object Shading Yes Yes
Shade Electric Effect Model Step Fractional Partition
Terrain-aware Backtracking Yes No
Custom Rotation Angles Yes No
3D Transposition Yes Limited*
Rear Shading (View Factor) Yes Yes
Sub-hourly simulations Yes No
Detailed Mismatch No No**

*Limited to the number of user-defined orientations
**Available for small systems only (5 MW max)

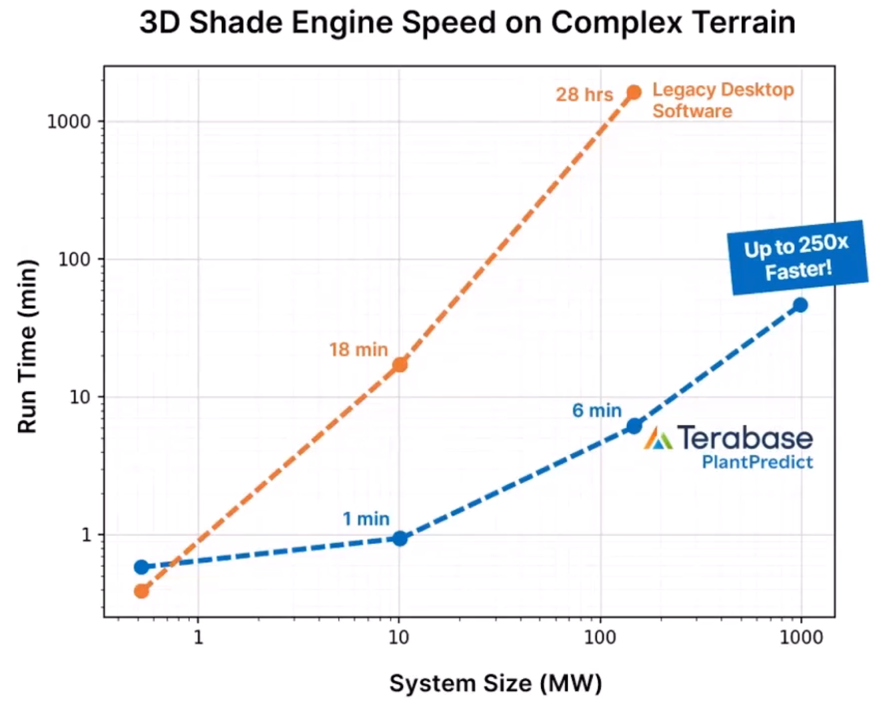

Both software packages produce nearly identical shading results, differing by no more than 0.3% when tested on complex terrain. However, PlantPredict provides these results up to 250 times faster.

Why is PlantPredict Faster and More Accurate?

Below are four reasons why PlantPredict outperforms its competitors in terms of speed and accuracy:

  1. Cloud-native architecture
    • Heavy computation is performed on a scalable cloud infrastructure with the required CPU and memory resources.
    • Frees up local PC resources and eliminates the need for software installation.
  2. Polygon Clipping Algorithm
    • Uses vector-based geometry to calculate exact shade shapes
    • Intersects polygons directly, reducing the number of operations by orders of magnitude.
    • Infinitely zoomable shade shapes with crisp edges.
  3. Broad-phase and narrow-phase collision detection
    • Efficiently filters which tracker bays interact before calculating shade—avoids unnecessary computation.
  4. Optional interpolation and shade object simplification
    • Users can choose bounding box approximations for non-critical objects (e.g., silos, trees) to accelerate calculations.
    • Calculation on a subset of timestamps and interpolation of the rest of the timestamps is also available for an additional speed boost.

PlantPredict V12 Solution

PlantPredict Version 12 introduces a powerful cloud-based 3D shade engine that runs sophisticated terrain and shading analysis in minutes rather than hours.

Whether you’re modeling a small fixed-tilt system or a gigawatt-scale terrain-following tracker project, PlantPredict can now handle complex 3D scenes with over 200,000 tracker objects, processing calculations up to 250x faster than traditional desktop software like PVsyst.

Check out the next section to see how easy the 3D workflow actually is in PlantPredict.

PlantPredict 3D Shade Analysis Workflow

To get started with 3D modeling, you will need a PVC file of your layout from PlantPredict, Design Pro, or Terrain Pro. You can also use the PVC files from the layout generated in PVFarm or PVCase. SHD files generated by PVsyst or PVFarm can also be used, but note that this option is still in beta release.

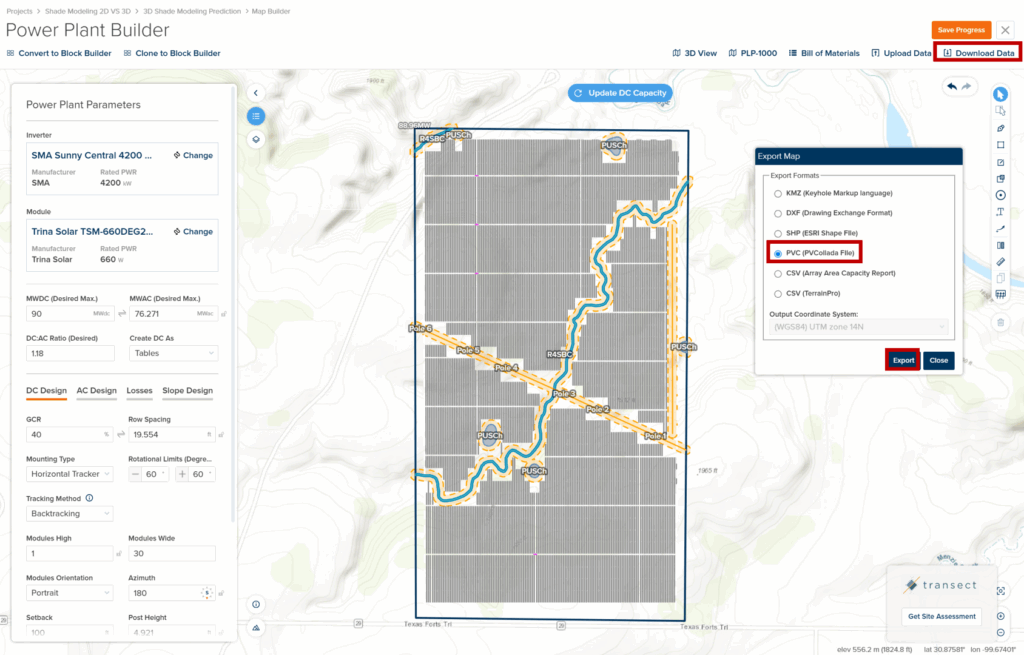

For this demonstration, we will use the PVC file from a PlantPredict prediction. Simply open your prediction in Map Builder, click Download Data, choose the PVC (PVCollada File), and then click Export.

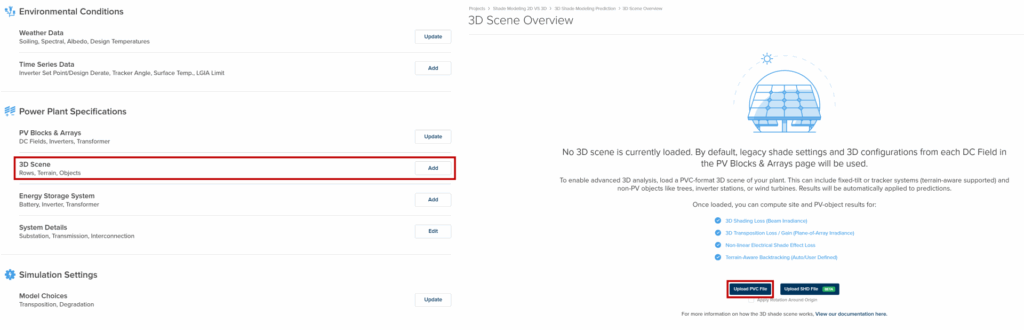

Come to the Prediction Start Page. Click on Add for the 3D Scene option, and then upload the PVC file.

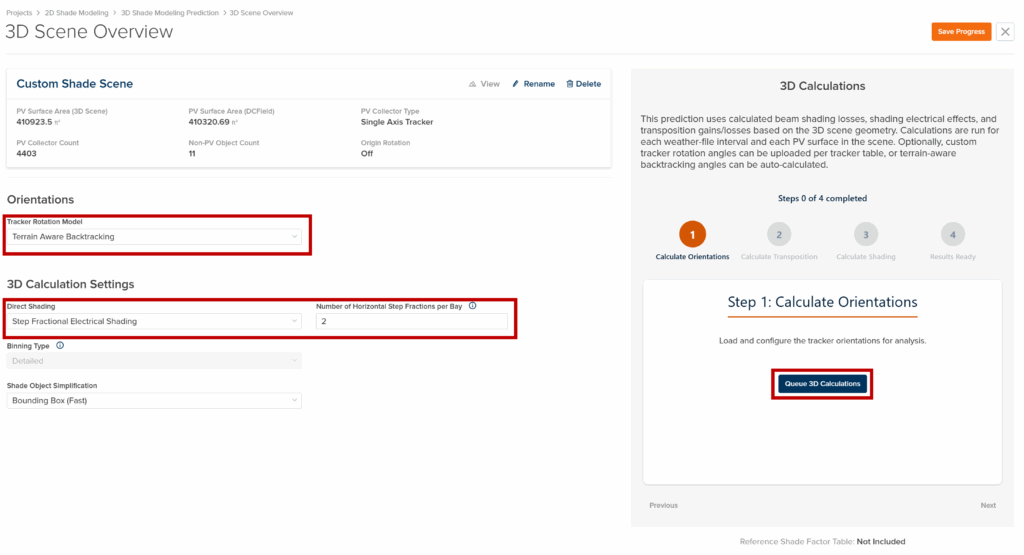

In the 3D Scene Overview, you will need to select the Orientations. For this demonstration, we will use the Terrain Aware Backtracking option as the Tracker Rotation Model.

Next, choose the options under the 3D Calculation Settings. For the Direct Shading option, since this project uses crystalline-silicon PV modules with half-cut cells, select Step Fractional Electrical Shading. By default, the number of horizontal fractions per bay is set to 2. In this case, as the modules are mounted 1-high in portrait mode, 2 horizontal fractions per bay is the correct input (2 half-modules x 1 module-high mounting). To learn more about the Step Fractional Electrical Shading, check out the PlantPredict Release 12.17.0.

Click on the Queue 3D Calculations, and the wizard will automatically calculate Orientation, Transposition, and Shading.

Once the result is ready, you can click on View 3D Shade Results to view the Shading Simulator and Heat Map. Note that the Shading Simulator is for viewing purposes and is running locally in your browser. As a result, you can access it before or after running the shade scene. On the other hand, the HeatMap Viewer uses the results of the 3D simulation and is only accessible after running the 3D scene.

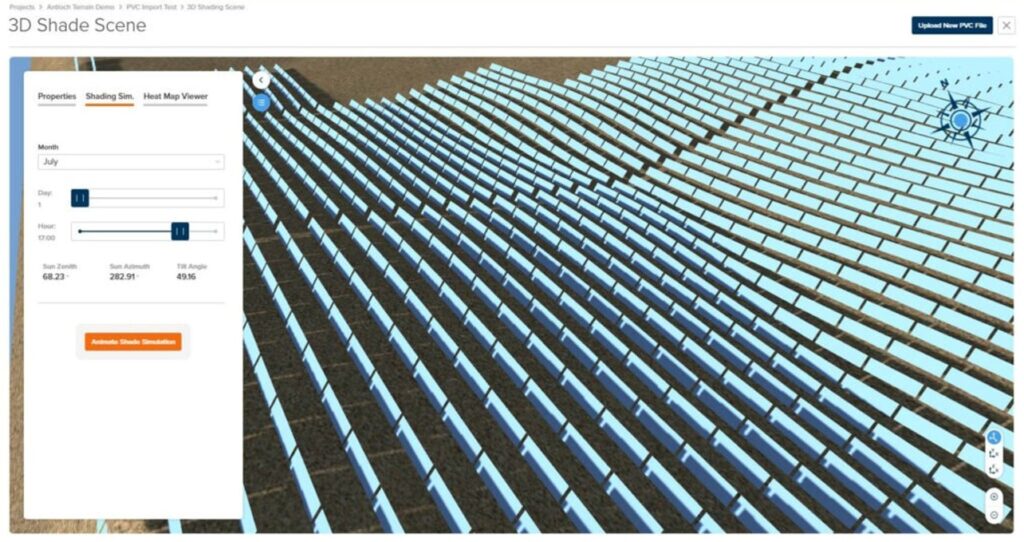

Below is screenshot of the Shading Simulator in PlantPredict. This simulator allows you to select a date and time, and the software assigns the corresponding sun zenith and azimuth to display shading for that timestamp.

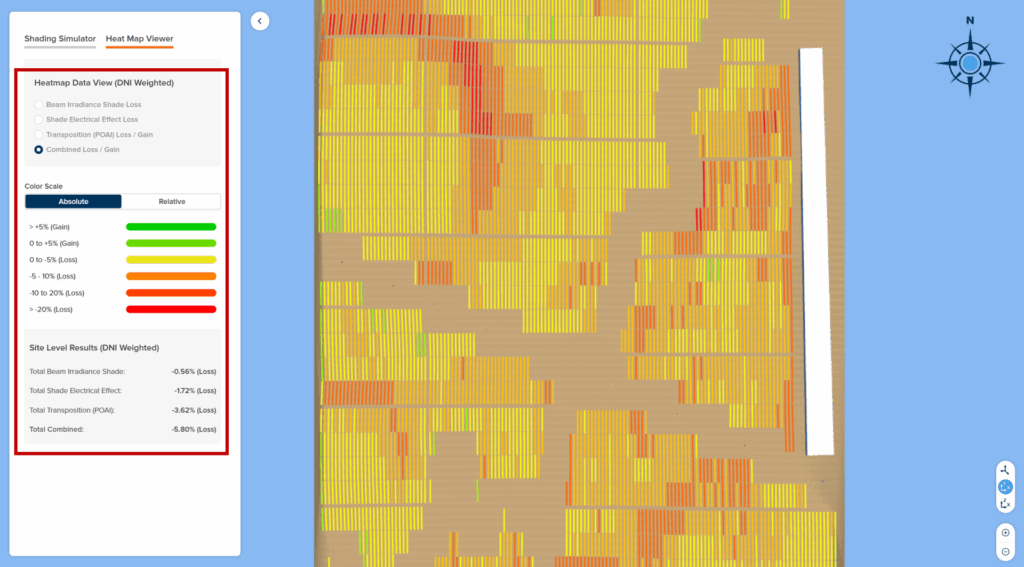

Below is a screenshot of the Heat Map Viewer in PlantPredict. This tool helps visualize which tracker objects are most affected by shading, electrical effect of shade, transposition, and combined loss/gain from these three effects. The insights from the heatmaps can be used to update the layout or parameters (in PlantPredict Map Builder tool or any software that was used to design the layout).

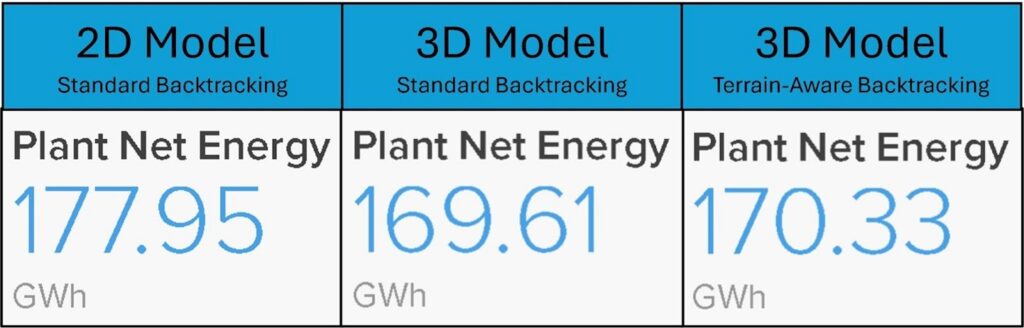

Finally, you can go back to the prediction home screen and click Run Prediction. Below, we compare the results between a 2D Shading analysis and 3D Shading with Terrain-Aware Backtracking. You can notice how we would have overestimated the yield if we had not considered the 3D Shading calculations. Terrain-aware backtracking can recover a fraction of the energy lost due to terrain.

3D Shade Modelling Use Cases and Best Practices

PlantPredict V12 makes 3D shade analysis accessible for every project. However, knowing when it’s essential and how to configure it properly can really enhance the accuracy of your results.

When Is 3D Shade Modeling Essential?

  • Rolling or complex terrain: Think of sites with hills, valleys, north-facing slopes, or significant elevation changes where flat-ground assumptions just don’t cut it.
  • High ground coverage ratio (GCR >40%): Dense racking layouts on uneven ground where shading between trackers becomes a big deal.
  • Terrain-following tracker systems with terrain-aware backtracking strategy: Full 3D simulation is key for making accurate performance predictions since the tracker angles can vary across the site.
  • Known shade sources: If your project is near trees, wind turbines, buildings, transmission lines, silos, or other structures that create shade, you’ll want to pay attention.
  • Financial precision requirements: For projects that require less than 2% energy prediction uncertainty to satisfy banks or investors, 3D modeling is a must.

Best Practices for Configuration:

  • Align your electrical effect of shade model (“Direct Shading” drop-down menu) with your module technology
  • Choose the right backtracking model that fits your terrain
  • Be careful with how you simplify shade objects: bounding boxes are great for small convex objects (e.g., trees) but can overestimate shade with large concave objects such as a wind turbines
  • Always compare 2D and 3D scenarios with each other
  • Validate your 3D scene (PVC File) visually using the Shading Simulator before starting the simulation

Modern 3D shade analysis has evolved from a computational challenge into an accessible, fast solution. PlantPredict’s polygon clipping approach delivers both precision and speed. With PlantPredict, engineers can now model gigawatt-scale projects in minutes rather than hours. Its speed revolution has made sophisticated 3D analysis a practical standard for every project.

Start creating your 3D shade models today and experience how accurate and fast analysis can enhance your solar project development process.
