Map Display

After input of all required information, an “Update DC Capacity” button will appear in the upper-center part of the screen allowing the boundary to be populated with DC tables:

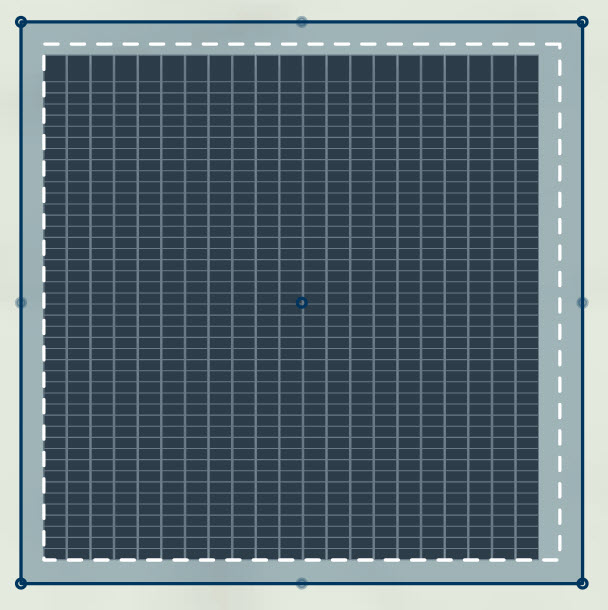

  • 0-15 Acres: Individual DC tables are displayed.

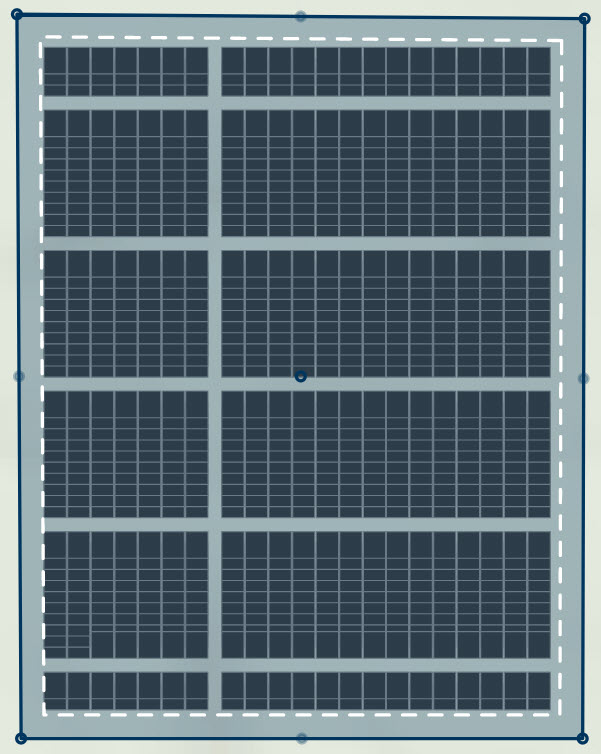

  • 15-50 Acres: Individual DC tables are displayed and 20ft roadways are included between quadrants.
  • 50-1500 Acre: Arrays are displayed with custom edges for irregular shapes but individual tables are not shown.

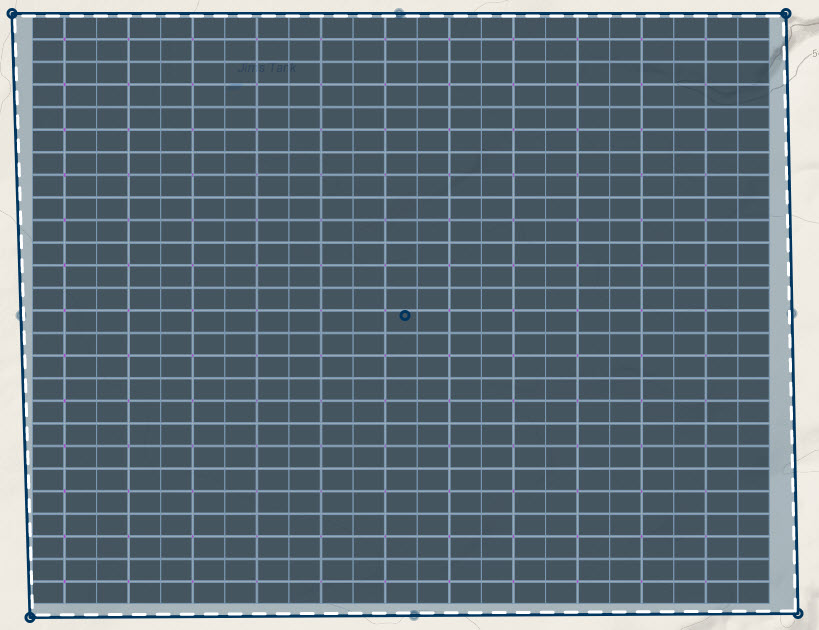

  • 1500+ Acres: Arrays are displayed without custom edges for irregular shapes.

Results – Key Terms

Estimated AC Output.


Estimated DC output.


Area Enclosed within the site boundary.


Area that can hold DC tables.


Maximum DC output when utilizing full array area.


The percent of the site capacity required to produce the maximum desired DC.
